What is
Air Slide Fabric?

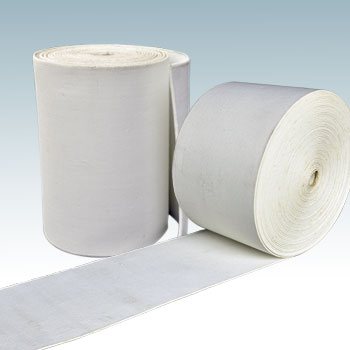

The new airslide fabric (air slide canvas) is developed by our factory adopts advanced technology.Air sliding fabrics are used for pneumatic conveying of fine dry products such as cement and other raw materials. Airslide fabric is a solid fabric used for air sliding.

It is suitable for pneumatic transportation of powdery materials such as cement and alumina. It is also suitable for pneumatic conveying devices of other powder and granular materials. An Airslide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt. Material will flow to the chute lower side as pneumatic blower down Airslide belt.The product is spread between the material and the air chamber, the following is the gas chamber, the above is the material, under the action of air pressure through the product, the material fluidized, so as to achieve the purpose of transport.

Our air slide fabric is named as fluidising fabric,Airslide fabric, Air slide cloth,fluidizing fabric,aeration pad,aeration fabric,air permeable fabric, Air slide canvas, Air Slide Belt Fabric,air slide fabrics and Fluidization cloth, Fabrics for Air Slides.

types of
air slide fabric

Depending on the customer`s request, we can offer air slide fabric made of different raw materials, in various grades of airpermeability and thickness, depending on the application.Click here to download the product description

Specifications: B250mm, B270mm, B480mm, B580mm; other air slide fabric specifications between 10mm to 1600mm can be produced at any time according to user needs; more than 1600mm of special specifications to be agreed in advance.

Material: Polyester Staple Fiber.

Lenght (m)：20-100. Width (m): 0.1-1.6 Thickness: 5-6mm.

Breathability:2m³/m² min:600pa-1200pa.<3m³/m² min:<2000pa

Breaking Strength (N/mm):Warp Direction≧ 470N/mm ,Weft Direction≧ 350N/mm .

Operating Temperature (℃): Continuous Operation 220 ,Instant Operation 250 .

Air slide fabric is also named Air slide canvas, Air slide belt fabric, Complete set aero cloth，air slide fabrics, air slide fabric, Solid Woven Air Slide Material, Air permeable fabric, Pneumatic conveyor belt,Aeration pad, Fabrics for air slides.

Product
Performance

With a special and controllable air permeability, air slide fabric can help to improve the convey efficiency and also guarantee the mixed powders uniformity.

When powder transfering, the air slide fabric combined with pressed air in flume make the dry powder become to fluid particles, so the equipment won't be damaged from abrasion, can reduce many repair works. Further more, for the particles be transferred in air tight flume, they won't lost when transferred, it can help to save the cost, and won't pollute the environment.

Gyrosigma clear, smooth, dimensional stability, no deformation;
Wear-resisting, corrosion resistance, high temperature resistant, no moisture absorption and therefore longer life;
No moisture absorption, No caking
Resistant to rotting and decomposition
Complete unloading without residues
Consistent fluidization over the complete surface
Good resistance to abrasion
Low shrinkage even when used under hot and humid conditions
Low energy consumption, very little maintenance, reduce costs

Specific parameters please click here.

Air slide fabric
Purpose

Depending on the customer`s request, we can offer air slide fabrics(fluidizing fabric) made of different grades of airpermeability and thickness,depending on the application.

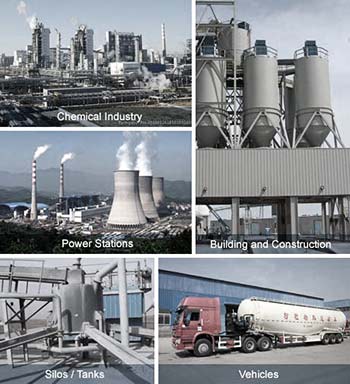

Building and Construction : Cement, Furnace Dust, Gypsum, Limestone, Calcium Hydroxide, Lead Monoxide, Production of Aluminum, Acid Crystals, Pure Clay, Phosphates, Magnesite Concentrate, Finely Ground Fluoride, Finely Ground Quartz

Chemical Industry : Thomas Meal (Fertilizer), Rubber Compounds, Sinter Dust, Catalysts Sodium Sulfate, Soap Powder

Power Stations :Filtered Dust, Flue Ash, Discharging Flue Ash, Coal Dust

Silos / Tanks :Discharging Systems, Mixing Equipment, Homogenizing Systems, Warehouse Units

Vehicles : Silo Truck Discharging Cones, Railway Wagon Discharging Cones, Vessel Aeration & Discharging Bottoms, Container Aeration & Discharging Bottoms

Chute Bottoms :Silo Truck Discharging Cones, Railway Wagon Discharging Cones, Vessel Aeration & Discharging Bottoms, Container Aeration & Discharging Bottoms

How
Stuff Works

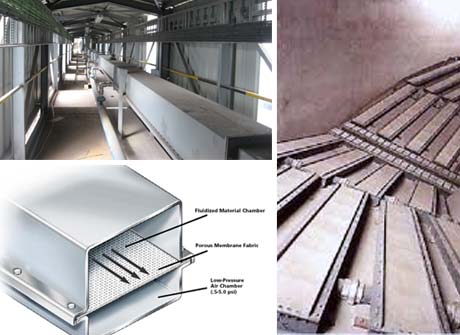

An Airslide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt.

Material will flow to the chute lower side as pneumatic blower down Airslide belt.The product is spread between the material and the air chamber, the following is the gas chamber, the above is the material, under the action of air pressure through the product, the material fluidized, so as to achieve the purpose of transport.

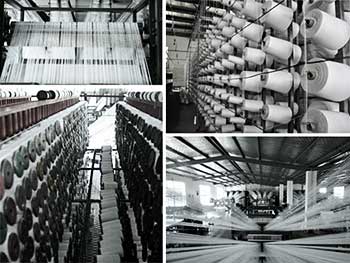

Knitting method

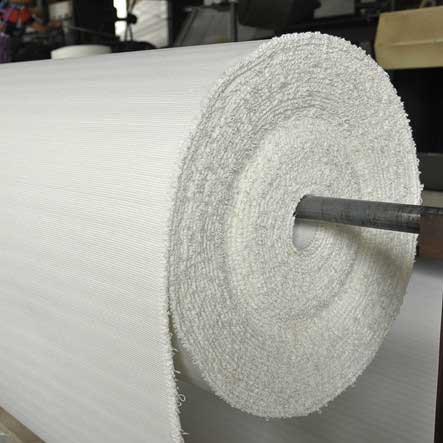

The air slide fabric requires special looms, the air slide fabric(aeration fabric) is heavy enough and the performance is strong. Solid woven fabrics from polyester staple fiber as raw material, by the integration of heavy looms, weft intertwined.

Superior abrasion resistance
Thickness of 5mm to 8mm (higher thickness made to order)
Rot and mildew resistant
Unaffected by temperature from 30°C to 220°C

Successful Case

We maintain a long-term and stable cooperation relationship with Lafarge, TCC, Asia Cement , Onoda Cement, Conch Cement, Tianshan Cement.Long-term supply of air slide fabric.

Gyrosigma clear, smooth, dimensional stability, no deformation;
Wear-resisting, corrosion resistance, high temperature resistant, no moisture absorption and therefore longer life;
No moisture absorption, No caking
Resistant to rotting and decomposition
Complete unloading without residues
Consistent fluidization over the complete surface
Good resistance to abrasion
Low shrinkage even when used under hot and humid conditions

news of
air slide fabric

Depending on the customer‘s request, we can offer airslide fabrics made of different raw materials, in various grades of airpermeability and thickness, depending on the application

CSM PRODUCTS CATEGORY

China Sunrise Machinery (CSM)is designated as OEM for Lafarge and also maintain long-term cooperation with SINOMA. Main product of our textile division are industrial filter bags,Air Slide Fabrics,Needle Punched Felt,Bulk Loading Bellow,Cement Bulk Bag and so on.They have been directly or indirectly used in hundreds of cement production lines worldwide. China Sunrise Machinery(CSM) is also the leader of cement auxiliary machinery industry in CHINA.

Cement Plant Bulk Loading Bellow

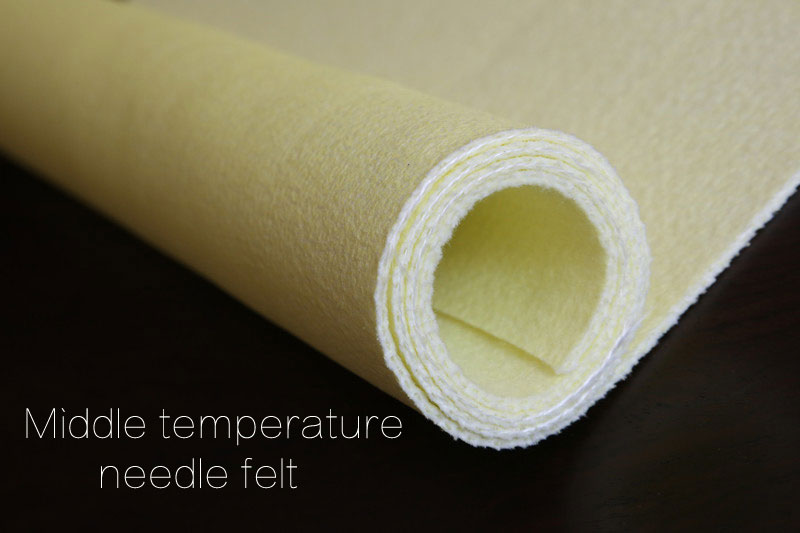

Needle punched felts
